An Open-Source Hardware and Software Platform for Telesurgical Robotics Research

Chen, Zihan, Deguet, Anton, Taylor, Russell, DiMaio, Simon, Fischer, Gregory, Kazanzides, Peter
Johns Hopkins University
Publication cover image

Please use this identifier to cite or link to this publication:
New: Prefer using the following doi:
Published in The MIDAS Journal - MICCAI 2013 Workshop: Systems and Architectures for Computer Assisted Interventions.
Submitted by Peter Kazanzides on 2013-08-06 15:55:46.

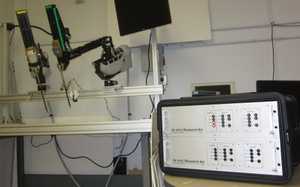

We present our work to develop a telerobotics research platform that provides complete access to all levels of control via open-source custom electronics and software. The electronics employs an FPGA to enable a centralized computation and distributed I/O architecture in which all control computations are implemented in a familiar development environment (Linux PC) and low-latency I/O is performed over an IEEE-1394a (Firewire) bus at speeds up to 400 Mbits/sec. The mechanical components of the system are provided by the Research Kit for the da Vinci System, which consists of the Master Tool Manipulators (MTMs), Patient Side Manipulators (PSMs), and stereo console of the first-generation da Vinci surgical robot. This system is currently installed, or planned for installation, at 11 research institutions, with additional installations likely in the future, thereby creating a research community around a common open-source hardware and software platform.
